First Interaction

In this guide we will create our first interaction. If you haven't installed Typewriter yet, please follow the Installation Guide first.

 info

This guide uses the Basic Adapter, hence it must be installed before following this guide.

Let's create our first interaction. Our example interaction will look like this:

1. The player clicks on a flower.
2. A chat dialogue is opened, and the player is given two options.
   • Smelling the flower
   • Touching the flower
3. Both options lead to some dialogue. But some behavior changes depending on the option.
   • Smelling the flower will have different dialogue the second time.
   • Touching the flower will give the player a flower one time.

If at any point you get stuck, feel free to ask for help on our Discord.

Opening the Web Panel

Before we begin creating our interaction, we need to open the web panel. To do this, run /typewriter connect in game. Then clicking the link that is given to you.

 caution

If you're getting a message along the lines of "The server is not hosting the websocket. Try enabling it in the config", please refer to Configuring the Web Panel

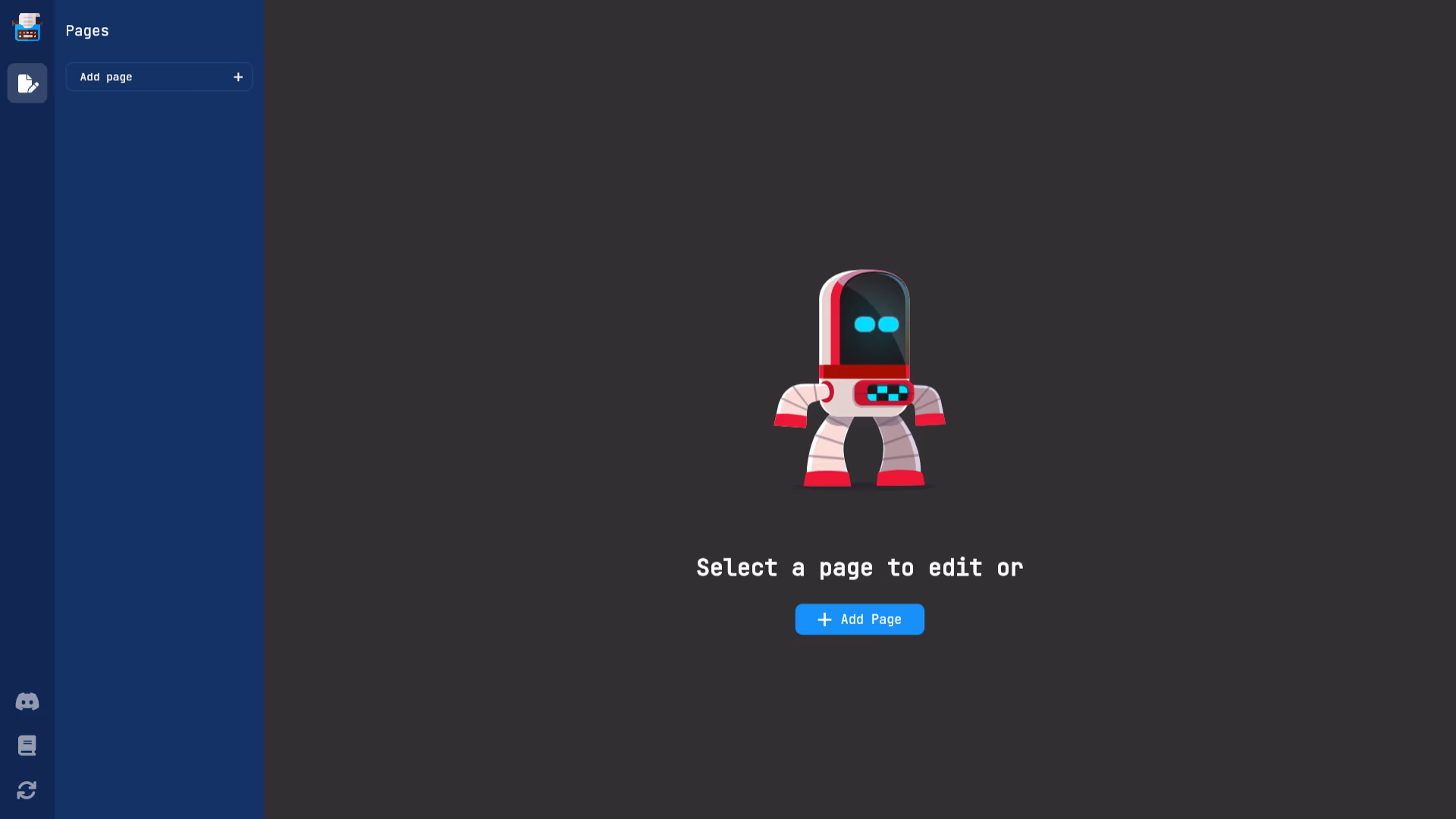

This will give you a link to the web panel. Once you have opened the web panel, it should look something like this:

Creating a page

Pages in typewriter represent a self-contained unit of content. Pages can be used to create a story, or to create a quest.

Let's create a page. To do this, click on the Add Page button. This will open a modal where you can create a page. Pages need a name which is used to identify the page and must be unique. We will call our page flower. Page names are written in snake_case, just like any other identifier in Typewriter.
For now, we will leave the page type on Sequence.

Panel layout

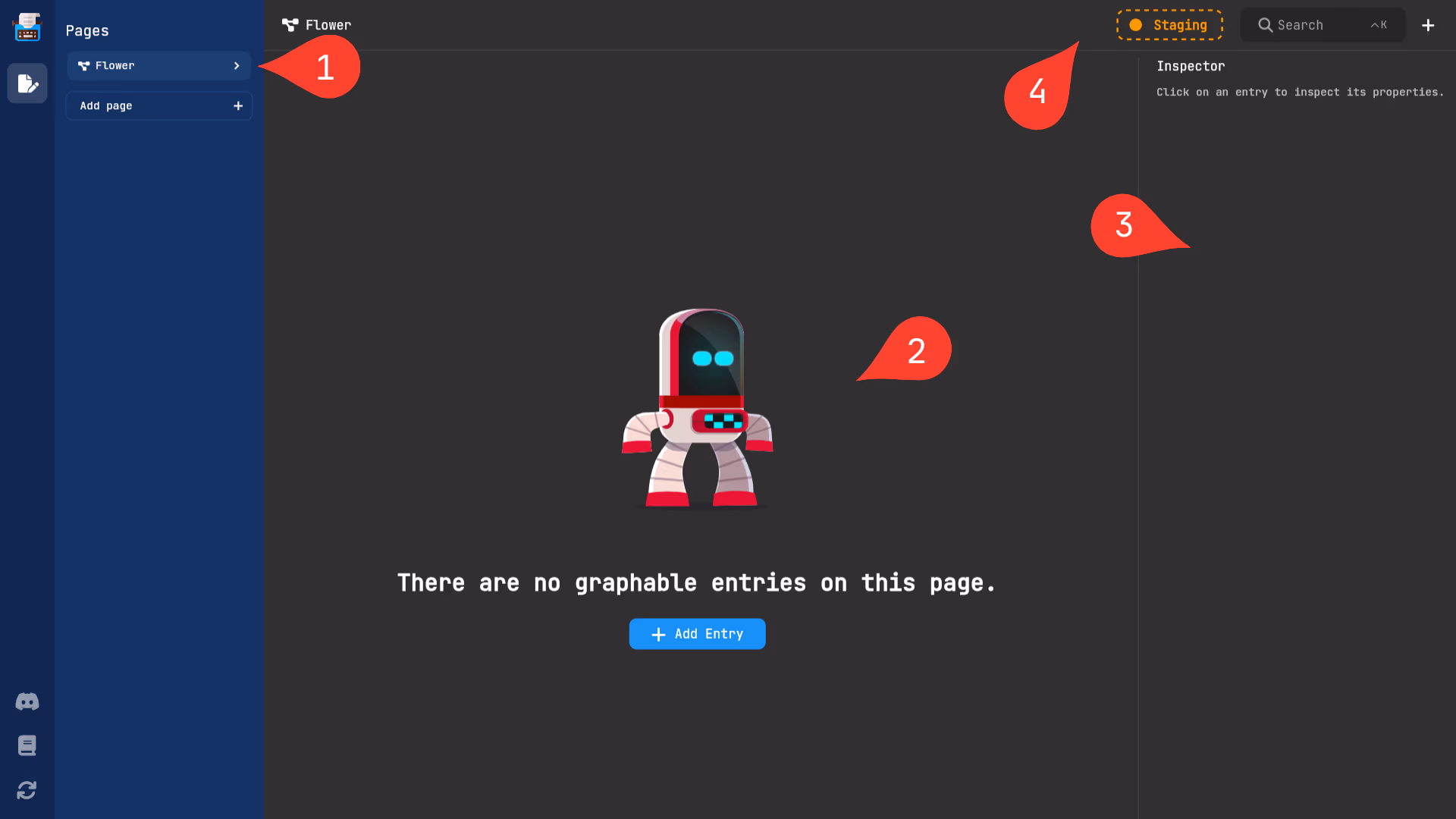

Let's have a look at everything that is on the panel.

1. The page lists: This is where you can see all the pages that you have created. You can also create new pages here.
2. The graph editor: This is where you can create the flow of your interaction. You can drag & zoom the graph editor to make it easier to work with.
3. The inspector: This is where you can edit the properties of the selected node. This is where the magic happens.
4. The action bar: There are multiple actions that we can click on. Let's check them out from left to right
   • Staging indicator: This indicates whether you have staging changes. If the indicator is orange, it means that you have changes that are not active on the server. When green, it means that the changes are active on the server. We will learn more about this Here.
   • Search bar: This is where you can search for entries or create new ones. We will learn more about this Here.
   • Add button: This is where you can add new entries. This opens the search bar where you can create new entries.

Creating first entry

Let's actually start working on the interaction. To do this, we need to create an entry. An entry is a single unit of something. It can be a dialogue, an event, an action, or anything else.

Let's create an event entry that will be triggered when we click on a red tulip. To do this, click on the + button in the action bar. This will open the search bar. The search bar is smart and can filter for specific actions such as creating a new entry. To create the event, type on interact with block. This will show you a list of entries that you can create. Click on the Add On Interact With Block entry. This will create a new event entry.

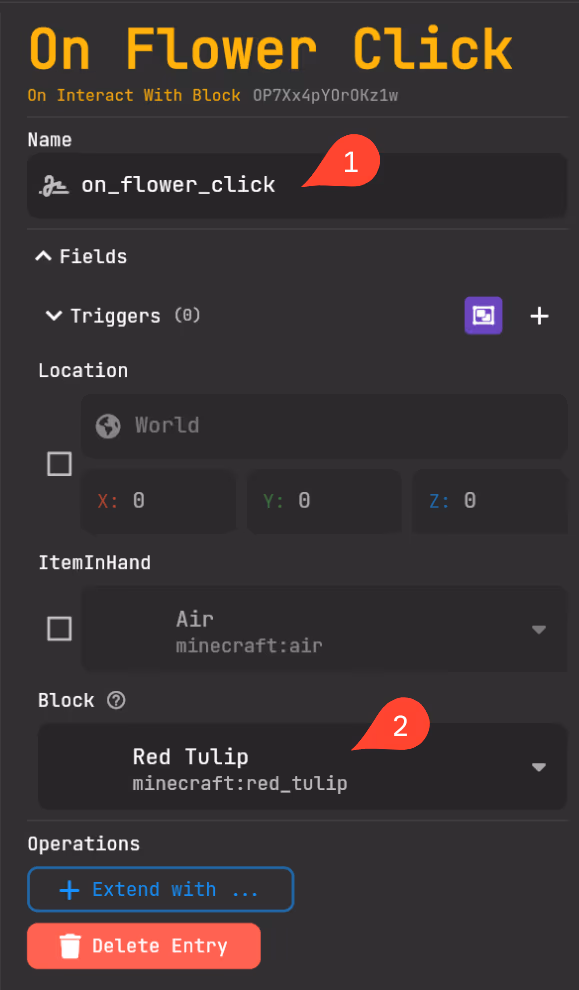

As you can see, the inspector auto selected the entry that we just created. In the inspector, there are several things that we can change. Let's change the name of the entry to on_flower_click. We can also change the block that we want to interact with. To do this, click on the Block field. This will open a modal where you can select a block. Let's select the red tulip. After this the inspector should look like this:

Creating an option

Currently, when we click on the red tulip, nothing happens. This is because there is no entry that gets triggered when a player click on a red tulip. Let's change that. To do this, we need to create an Option. An Option is a dialogue that allows the player to make a choice. Let's create an Option that will be shown when we click on the red tulip. To do this, click on the + button in the action bar, and add an option entry.

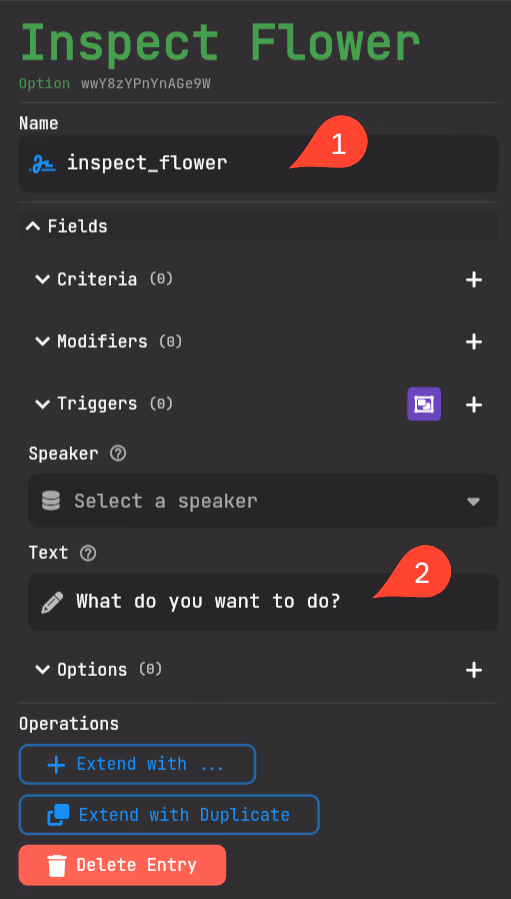

Then change the name of the entry to inspect_flower. Then change the text of the option to What do you want to do?. After this the inspector should look like this:

Adding a speaker

Every dialogue needs a speaker. Speakers have a display name and can play a Minecraft sound when they are triggered. Speakers are something called static entries. Static entries are entries that are not triggered by anything. They are always active, and can be used to reference things.

To create static entries, we must make a special page called a Static page. Let's create a static page called Flower Static. Then, inside of it, create a simple_speaker which is the most basic version of a speaker. Give it the name of flower, and let its display name be <red><bold>Flower. This will make the display name of the speaker red and bold using the Adventure Library. It should look like this:

After that, we still need to go back to the flower page, and select the new speaker in the Inspect Flower entry. To do this, click on the Speaker field. This will open a modal where you can select a speaker. Select the flower speaker. It should look like this:

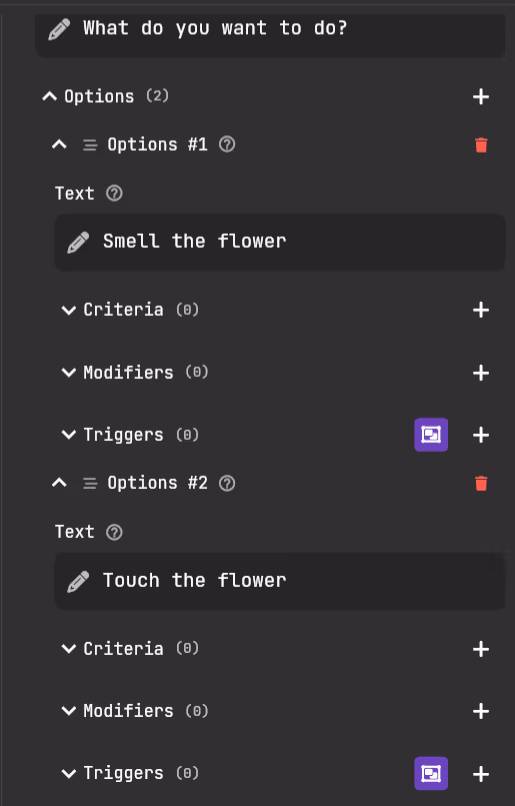

Now we only need to put in the different options that we want the player to be able to use. Click on the + next to the options drop down to add a new option. Then change the text of the option to Smell the flower, then add another option with the text Touch the flower. After this the inspector should look like this:

Connecting the entries

As you can see in the graph page, the entries are not yet connected. Entries can trigger next entries by clicking on the purple selection next to the triggers field. This will put in a mode where you can select all the entries that you want to trigger. When you are done you can click finish to connect them up. It should look something like:

Testing the interaction

To test our changes we need to publish them to the server. We can do this by hovering over the staging button

and clicking the publish button.

 Note

We do not have to restart the server. Publishing changes is instant and will be active immediately.

If we now go in-game we will see the following when we click on a red tulip it will show us the two options:

Smelling flower

Adding dialogue

When the player wants to smell the flower, we want to display some dialogue. Try to add a spoken dialogue entry. Rename it to smell_flower_initially, add the text You smell the flower. It smells <blue><bold>fragrant</bold></blue>. select our flower speaker we created earlier, and finally specify a duration of 1s for one second that the message will be animated. Finally, connect the smell_flower_initially entry to the inspect_flower entry.

 caution

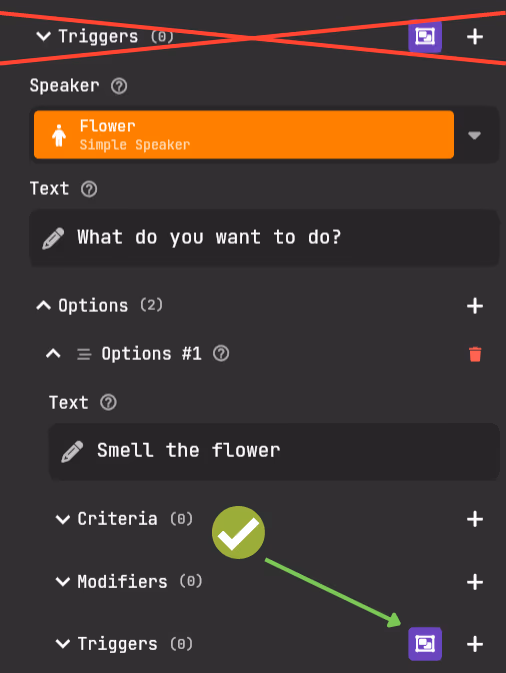

It is important that you use the specific trigger from the correct option. The first triggers field are for global triggers.

When you publish the changes in the game, it should look something like this:

Adding a conditional dialogue

Currently, every time we pick the Smell the flower option, we will get the same dialogue. This will get boring very quickly. Let's fix it by introducing a new concept called Facts.

What are facts?

Facts are a way to store information for each player. Every fact is a separate entry and can only store one number per player. When an entry gets triggered we can check if a player meets a certain criteria for a given fact. Only if the player meets the criteria, will the entry get triggered. Then an entry can modify the same or different facts for that player.

There are different types of facts. Each type of fact changes when a player "forgets" a fact. Aka when a player logs out, after a certain amount of time, or never. When a player forgets a fact, the value of the fact will be reset to the default value 0.

Creating a fact

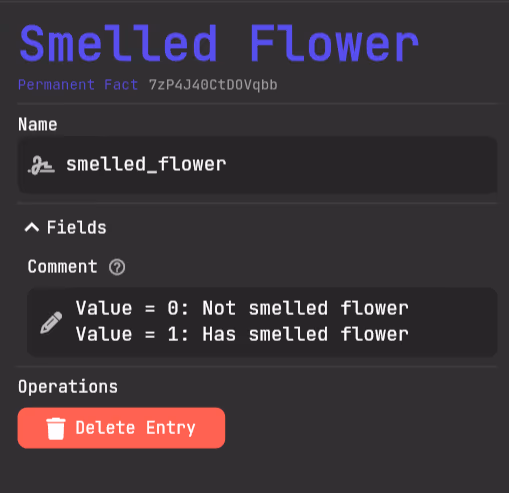

To create a fact, head over to a static page such as Flower Static, click on the + button in the action bar, and add a permanent_fact entry. Then change the name of the entry to smelled_flower. We can add a comment describing the fact and how it is used. After this the inspector should look like this:

Adding criteria to the dialogue

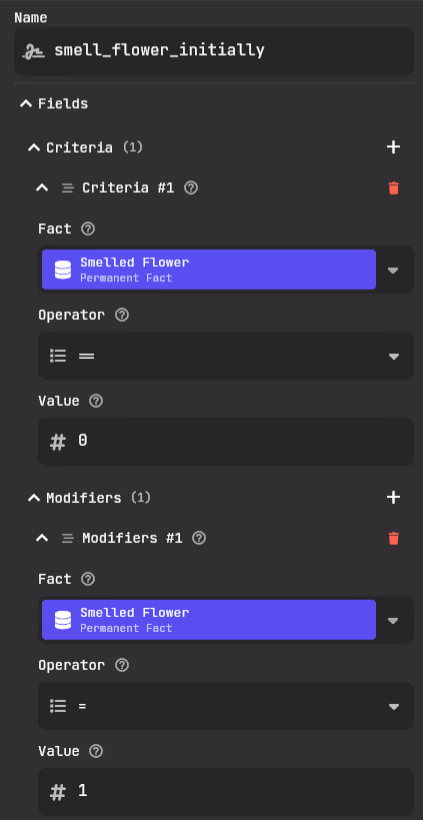

Now that we have created the fact we want to add a criterion to the dialogue. A criterion is a condition that needs to be met for the dialogue to be triggered. To add a criterion, click on the + button next to the criteria drop down. Then select the smelled_flower fact, and keep the rest the same. We also want to modify this fact when the dialogue gets triggered. To do this, click on the + button next to the modifications drop down. Then select the smelled_flower fact, make the modification = and the value 1. After this the inspector should look like this:

subsequent times. Rename it to smell_flower_second_time, add the text You smell the flower again. It still smells <blue><bold>fragrant</bold></blue>., select our flower speaker we created earlier, and finally specify a duration of 1s that the message will be animated. Connect it to the inspect_flower entry as a trigger for the smell the flower option.

 tip

We actually don't need to set any criteria on the smell_flower_second_time dialogue entry. Typewriter picks the next dialogue to be the dialogue by sorting all the next dialogue entries from most amount of criteria to least. Then picking the first one which has all the criteria met. In this case smell_flower_initialy has one criterion, and smell_flower_second_time has none.

So smell_flower_initialy will be picked when the player has not smelled the flower.

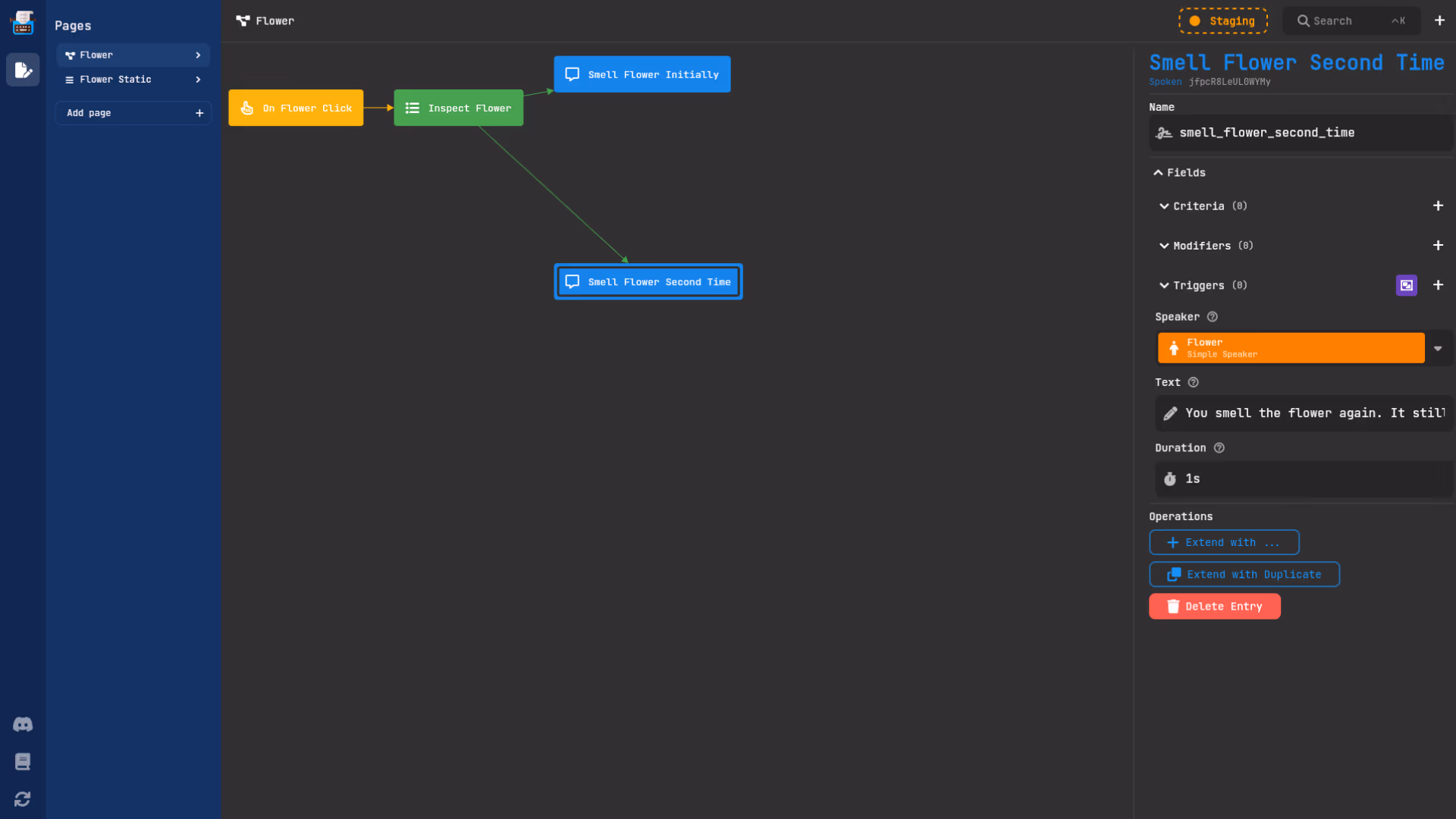

The UI should look something like this:

When you publish the changes. In the game it should look something like this:

Adding additional dialogue

Now that we have added the first two dialogue entries, we can add the rest of the dialogue. We can add the following dialogue entries:

• touch_flower - You touch the flower. It feels <yellow><bold>soft</bold></yellow>.

With the touch_flower you can add a give_item entry after it, which gives the player a red_tulip. If you add another fact named given_flower and add a criterion & modifier to the give_item entry, you can make it so that the player can only get the flower once.

If you are not able to make it work, try reading parts again or go to our Discord and ask for help.

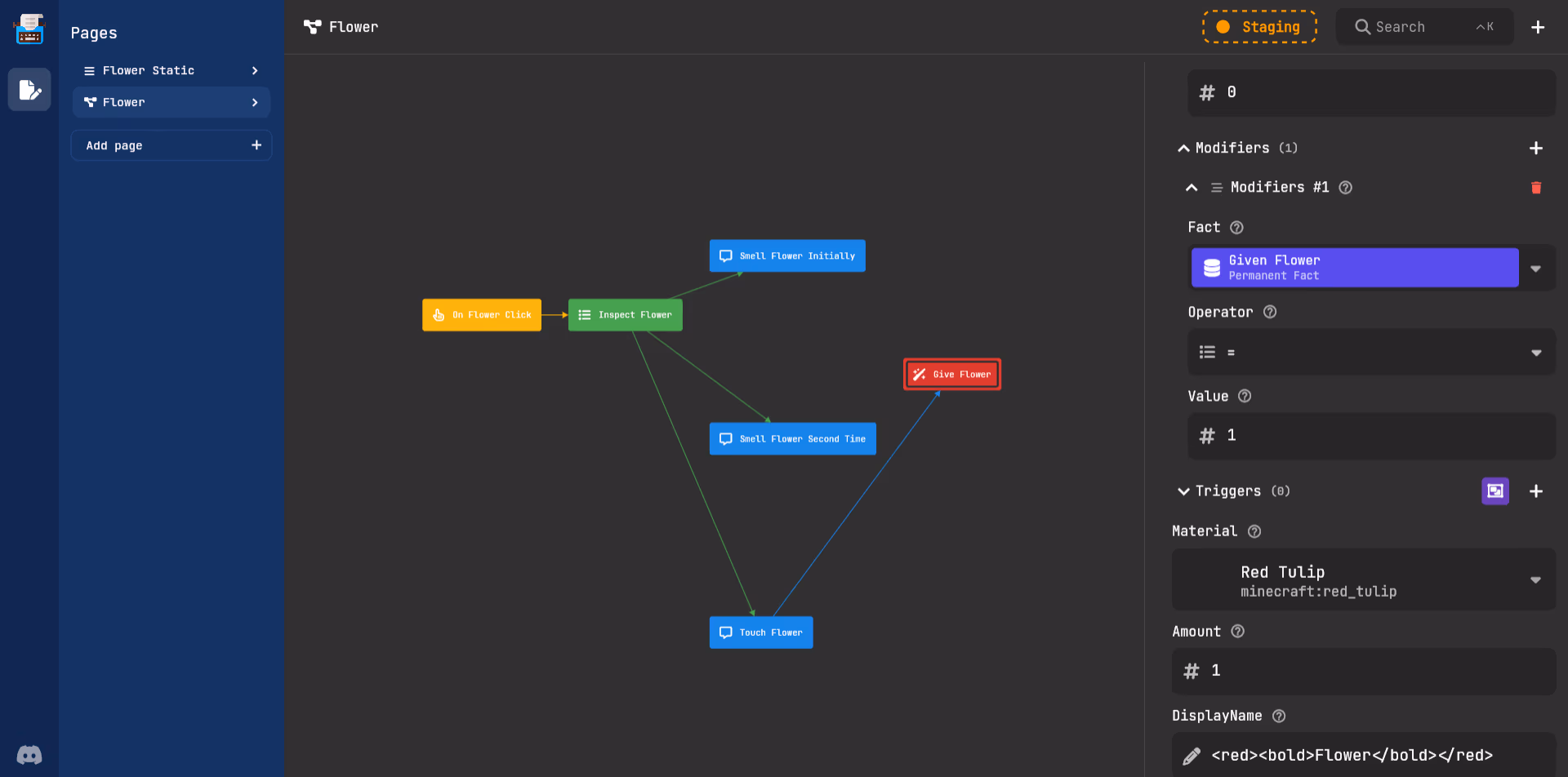

Finally, the UI should look something like this:

When you publish the changes. In the game it should look something like this:

Next steps

Now that you understand the basics of TypeWriter and have made your first interaction, it's time to spice up your interaction by adding a cinematic. Read the First Cinematic guide to learn more!

If you have any questions, feel free to ask them in the Discord.
